Customized Size Silicon Carbide Sliding Bearing With 1650℃ Max Temperature And Corrosion Resistance For Pumps
| مكان المنشأ | الصين |
|---|---|
| اسم العلامة التجارية | CSQ |
| إصدار الشهادات | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| رقم الموديل | منتجات مخصصة |
| الحد الأدنى لكمية | 20-50 PCS |
| الأسعار | negotiable |
| تفاصيل التغليف | رغوة + صندوق كرتوني |
| وقت التسليم | 20-45 أيام العمل |
| شروط الدفع | تي/تي |
| القدرة على العرض | 2000 قطعة شهريا |
اتصل بي للحصول على عينات مجانية وكوبونات.
ال WhatsApp:0086 18588475571
wechat: 0086 18588475571
سكايب: sales10@aixton.com
إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.
xتفاصيل المنتج
| اسم | محمل الأكمام المخصصة للسيراميك | فئة | محمل انزلاق السيراميك |
|---|---|---|---|
| مادة | كربيد السيليكون/الزركونيا | مقاس | مخصصة ، وفقا للرسومات |
| طلب | مضخات | طَرد | رغوة + صندوق كاوتون |
| جودة | دقة عالية ، حياة طويلة ، مصل OEM | مواصفة | الحجم القياسي ومخصص |
| إبراز | 1650℃ Max Temperature Silicon Carbide Sliding Bearing,Corrosion Resistance Ceramic Sliding Bearing,Customized Size SSiC Bushing,Corrosion Resistance Ceramic Sliding Bearing,Customized Size SSiC Bushing |
||
منتوج وصف

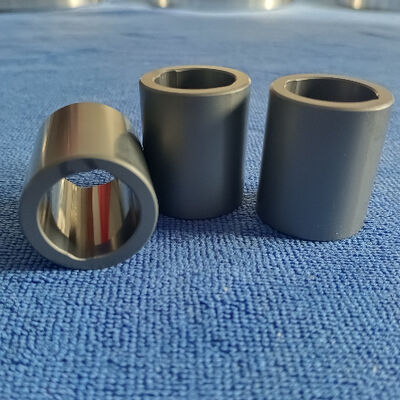

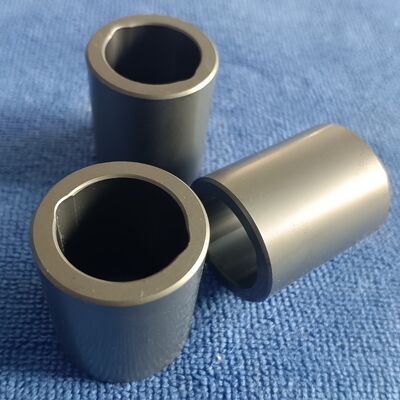

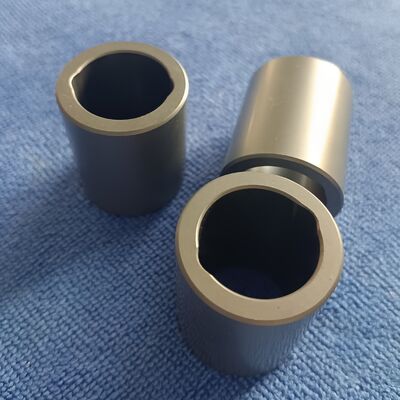

Customized Size Silicon Carbide Sliding Bearing Sleeve
Designed for pump applications with maximum temperature resistance up to 1650℃ and superior corrosion resistance.
Industrial Ceramic Sliding Bearing for Harsh Environments
Customized Silicon Carbide Sliding Bearing Sleeve engineered specifically for demanding pump applications. These advanced ceramic bearings utilize premium materials including silicon nitride, silicon carbide, and zirconia to deliver exceptional performance surpassing traditional steel bearings.
Key Advantages
- Corrosion Resistance: Highly resistant to harsh chemicals and environments, ideal for chemical processing and marine applications
- Reduced Friction: Smoother, harder surfaces minimize friction and wear, significantly extending component lifespan
- High Temperature Tolerance: Maintains structural integrity in extreme heat conditions up to 1650℃
Applications: Widely utilized in aviation, aerospace, navigation, petroleum, chemical processing, automotive, electronics, metallurgy, power generation, textiles, pumps, medical equipment, and defense applications.
Ceramic vs Steel Bearing Advantages
- Superior high temperature performance with stable mechanical properties
- Better performance during temperature fluctuations due to lower thermal expansion
- Improved anti-bite and anti-stuck performance characteristics
- Can operate without lubrication thanks to self-lubricating properties
- Resistant to acid, alkali and salt corrosion
- Electrical insulation and no static electricity generation
- Non-magnetic properties prevent abrasive particle adhesion
Material Properties
| Property | Value |
|---|---|
| Density | 3.15-3.18g/cm³ |
| Thermal Expansion | 4.0 (10-6/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410GPa |
| Chemical Stability | Superior resistance to acid/alkali corrosion (including hydrofluoric acid) |
Silicon Carbide Ceramic Material Specifications
| 项目 | Items | Unit | SSiC |
|---|---|---|---|
| 密度d | Density | g/cm | 3.10-3. |
| 硬度Hv | Hardness Hv1 | Kg/mm2 | >2550 |
| 弹性模量E | Young's Modulus | GPa | 410 |
| 抗弯强度RT | Bending Strength | MPa | 400-49 |
| 抗压强度 | Compressive Strength | MPa | >2500 |
| 断裂韧性KIC | Fracture Toughness | MPam -/2 | 4-5 |
| 泊松比 | Posisson's Ratio | 0.16 | |
| 热膨胀系a | Coefficient of Linear Expansion | 10-6/k | 4.0 |
| 品粒度 | Crystal Size | μm | <5 |
| 气孔率 | <3% |
Sintering Method: Pressureless Sintering S-Sic
Why Choose Us
Professional Team
With our company logos ZXSQ and CSQ, we possess eleven invention patents for utility models. Our high-quality professional team provides customized bearing products according to customer requirements. Since 1982, we have accumulated over 40 years of experience in ceramic bearing research, development, and production, becoming a leading enterprise in China's ceramic bearing market.
Advanced Manufacturing
We operate a fully automatic grinding and assembling production line with an annual output of 3 million sets of P5 and P4 precision level bearings. Our equipment includes a hot isostatic sintering furnace (HIP) imported from ABB Sweden, capable of reaching temperatures over 2000℃.
Material Expertise
We cooperate with raw material suppliers and maintain production technology to ensure product quality stability unaffected by international price fluctuations.
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relations with many domestic and foreign companies.
How can we guarantee quality?
We produce samples before mass production, inspect products with precision equipment, and use double packaging (foam and carton) to ensure product quality.
What can you buy from us?
Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic balls.
Why should you buy from us not from other suppliers?
We are an industry and trade integrated company with three factories, modern production and inspection equipment, offering better delivery dates and product quality.
What service can we provide?
We provide high quality products, customized services, and samples for customer confirmation.
Welcome Your Enquiry
We supply high quality bearings. For purchasing or price inquiries, please contact us. As a professional bearing company integrating R&D, production, sales, and service, we carefully manufacture each set of bearings using high quality raw materials.
We adhere to customer demand as our guidance, striving to provide quality products and after-sales service, creating value for customers as their partner. Welcome to discuss cooperation!
