Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance

  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
  • Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance
مكان المنشأ الصين
اسم العلامة التجارية CSQ
إصدار الشهادات FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
رقم الموديل سلسلة NU205/NU206
الحد الأدنى لكمية 50 قطعة
الأسعار negotiable
تفاصيل التغليف الرغوة+صندوق العربة
وقت التسليم قابل للتفاوض
شروط الدفع تي/تي
القدرة على العرض قابل للتفاوض

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

wechat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
اسم السيراميك محامل أسطوانية صف واحد مادة العرق نيتريد السيليكون أو كربيد السيليكون أو الزركونيا
مادة الأسطوانة نيتريد السيليكون أو كربيد السيليكون أو الزركونيا مادة القفص نظرة خاطفة // PFA
نموذج سلسلة NU205/NU206 الجهاز الرغوة+صندوق العربة
إبراز

Si3N4 Ceramic Cylindrical Roller Bearings,SSiC Ceramic Roller Bearings,ZrO2 Single Row Bearings

,

SSiC Ceramic Roller Bearings

,

ZrO2 Single Row Bearings
اترك رسالة
منتوج وصف
Ceramic Cylindrical Roller Bearings Single Row
High-performance ceramic single-row cylindrical roller bearings manufactured in advanced ceramic materials for demanding industrial applications.
Material Specifications
Ceramic Materials Available:
  • Silicon Nitride (Si3N4)
  • Silicon Carbide (SSiC)
  • Zirconia (ZrO2)
Cage Material Options:
  • PEEK
  • PFA

Construction of Ceramic cylindrical roller bearings:
Ceramic cylindrical roller bearings are available in single row, double row, and multi-row configurations. The bearing's rollers are cylindrically-shaped, but not true cylinders, as they are crowned or end-relieved to reduce stress concentrations. This particular design helps to reduce friction and allows for high-speed applications.


Material of Ceramic cylindrical roller bearings:
Ceramic cylindrical roller bearings are typically made from materials such as silicon nitride (Si3N4) or zirconia (ZrO2). These materials offer several advantages over traditional steel bearings, such as higher speed capability, higher stiffness, and better resistance to wear and corrosion.


Types of Ceramic cylindrical roller bearings:
There are three common types of ceramic cylindrical roller bearings, that is, Full complement ceramic cylindrical roller bearings, Precision ceramic cylindrical roller bearings for CNC spindle and a type of precision bearings with SI3N4 rings and a PEEK retainer. These types of bearings are designed for high precision applications and offer excellent stability and durability.

Product Overview
We manufacture a comprehensive range of ceramic single-row cylindrical roller bearings tailored to your specific requirements. Our bearings are engineered for superior performance in challenging environments.

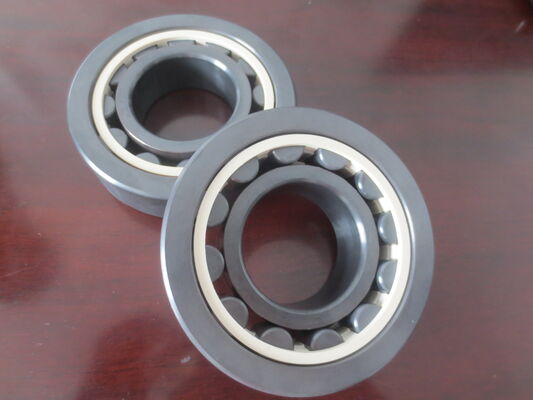

Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance 0
Technical Reference Data
Detailed specifications and performance data for our ceramic cylindrical roller bearing series.

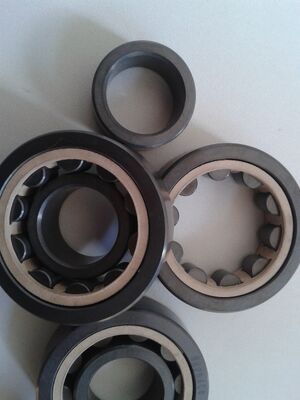

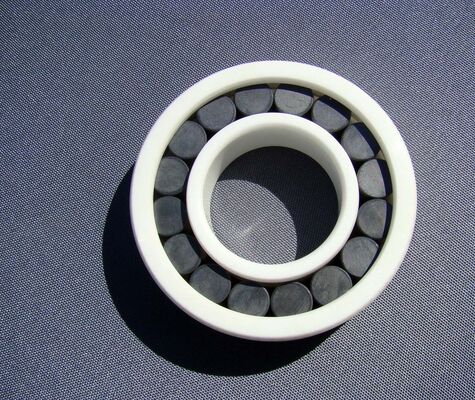

Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance 1 Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance 2
Why Choose Our Ceramic Cylindrical Roller Bearings Single Row Si3N4 SSiC ZrO2
Professional Expertise
Operating under brands ZXSQ and CSQ, we hold eleven utility model patents and maintain a professional team dedicated to providing high-quality bearing solutions tailored to customer specifications.
With over 40 years of experience since 1982, we have continuously advanced ceramic bearing material research, processing techniques, and equipment improvements, establishing ourselves as a leading enterprise in China's ceramic bearing industry.
Manufacturing Capabilities
Our facility features fully automated grinding and assembly production lines capable of producing 3 million sets annually of various specifications including 608-2PS and 608-2RS with P5 and P4 precision levels.
We utilize industry-leading firing equipment, including hot isostatic sintering furnaces imported from ABB Sweden, enabling product firing temperatures exceeding 2000℃.

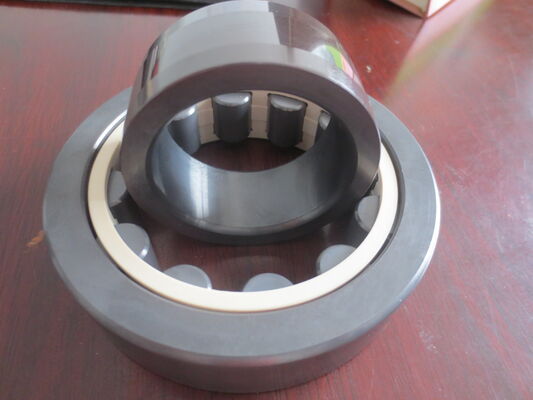

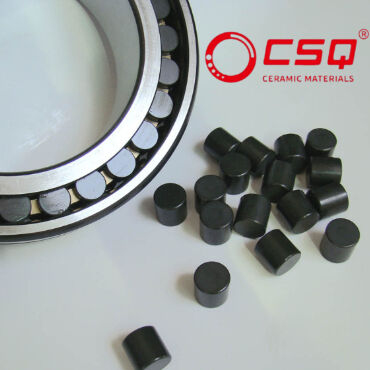

Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance 3 Ceramic Cylindrical Roller Bearings Single Row with Si3N4 Material and PEEK Cage for High Temperature Resistance 4
Frequently Asked Questions
Who are we?
We are a factory based in Beijing, China, with over 40 years of experience in ceramic bearing production and sales. We maintain cooperative relationships with numerous domestic and international companies.

How can we guarantee quality?
We conduct sample production before mass manufacturing, strictly adhering to customer requirements and production regulations. Comprehensive inspection using precision equipment and secure packaging with foam and carton protection ensures product quality.

What can you buy from us?
Ceramic deep groove ball bearings, ceramic angular contact ball bearings, hybrid ceramic ball bearings, ceramic linear bearings, and various ceramic ball types.
Why should you buy from us not from other suppliers?
As an integrated industry and trade company with three factories, we utilize modern production and inspection equipment to ensure superior delivery timelines and product quality.

What service can we provide?
We offer high-quality products and comprehensive customization services tailored to user requirements. Sample products are available for customer confirmation.
Contact Us
We supply premium bearing products and welcome your inquiries. As a professional bearing company specializing in research, development, production, sales, and service, we meticulously craft each bearing using superior raw materials.
We prioritize customer needs and are committed to providing quality products and comprehensive after-sales service. Contact us today to discuss potential cooperation opportunities!
