SSIC Shaft with High Temperature and Corrosion Resistance

  • SSIC Shaft with High Temperature and Corrosion Resistance
  • SSIC Shaft with High Temperature and Corrosion Resistance
  • SSIC Shaft with High Temperature and Corrosion Resistance
  • SSIC Shaft with High Temperature and Corrosion Resistance
مكان المنشأ الصين
اسم العلامة التجارية CSQ
إصدار الشهادات FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
رقم الموديل مخصصة
الحد الأدنى لكمية 20-50 PCS
الأسعار negotiable
تفاصيل التغليف الرغوة+صندوق العربة
وقت التسليم 20-45 أيام العمل
شروط الدفع t/t ، t/t
القدرة على العرض 2000 جهاز كمبيوتر شخصي شهري

اتصل بي للحصول على عينات مجانية وكوبونات.

ال WhatsApp:0086 18588475571

wechat: 0086 18588475571

سكايب: sales10@aixton.com

إذا كان لديك أي قلق ، فنحن نقدم مساعدة عبر الإنترنت على مدار 24 ساعة.

x
تفاصيل المنتج
اسم رمح السيراميك فئة السيراميك الهيكلي المتقدم
مادة سيراميك SSIC SI3N4 AL2O3 ZRO2 دقة مخصصة ، وفقا للرسومات
مقاس مخصصة الجهاز الرغوة+صندوق العربة
إبراز

Customized Precision SSIC Shaft,Food Machinery Ceramic Shaft,Pharmaceutical Industry Silicon Carbide Shaft

,

Food Machinery Ceramic Shaft

,

Pharmaceutical Industry Silicon Carbide Shaft
اترك رسالة
منتوج وصف
SSIC Shaft High Temperature Corrosion Resistance For Food Machinery Pharmaceutical Industry
Customized Ceramic Shaft Of Silicon Carbide With High Precision
Our silicon carbide shaft is manufactured from highly purified, sub-micron silicon carbide material through air pressure sintering. This process results in exceptional properties including high hardness (Hv2800), superior wear resistance, resistance to strong acids, alkalis, and salt corrosion, along with excellent high temperature performance.
Key Features
Key properties of pressureless sintered silicon carbide:
  • Maximum temperature resistance up to 1650℃
  • Low density: 3.15-3.18 g/cm³
  • Exceptional mechanical strength
  • Low thermal expansion: 4.0 (10-6/℃)
  • High thermal conductivity: 120 W/m°K
  • Extreme hardness: 2800 HV5
  • High elastic modulus: 410GPa
  • Superior chemical stability with resistance to acid and alkali corrosion (including hydrofluoric acid)
Technical Specifications
Parameter Value
Density 3.10-3.13 g/cm³
Flexural Strength 550 MPa
Thermal Conductivity 120 W/m*K
Max Operating Temp 1650°C

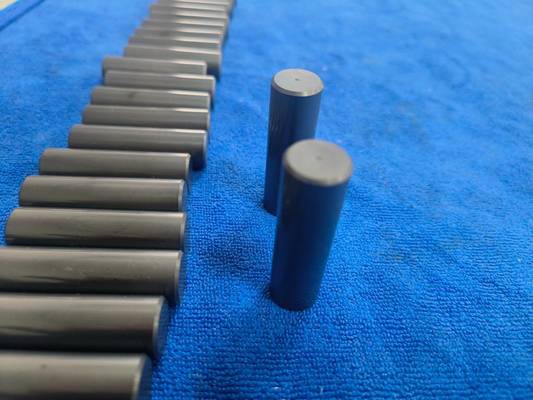

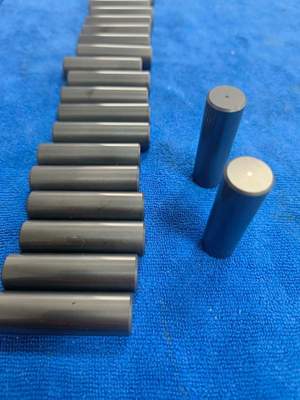

SSIC Shaft with High Temperature and Corrosion Resistance 0 SSIC Shaft with High Temperature and Corrosion Resistance 1
Ceramic vs Steel Material Comparison
  • Higher temperature capability: Ceramic maintains mechanical properties at elevated temperatures
  • Better thermal stability: Smaller thermal expansion coefficient reduces clearance variation
  • Superior anti-bite performance: Reduced thermal deformation improves resistance to seizing
  • Self-lubricating: Operates without oil lubrication in vacuum or difficult environments
  • Chemical resistance: Withstands acid, alkali, and salt corrosion
  • Electrical insulation: Non-conductive with no static electricity generation
  • Non-magnetic: Ideal for magnetic environments with reduced abrasive wear
Why Choose Our Products
Professional Team: With the brand names ZXSQ and CSQ, we hold eleven invention patents and maintain a professional team dedicated to providing customized bearing solutions. Since 1982, we've accumulated over 40 years of expertise in ceramic bearing material research and development.
Manufacturing Strength: Our fully automated production line has an annual capacity of 3 million sets of P5 and P4 precision bearings. Equipped with industry-leading firing technology including a Swedish ABB hot isostatic sintering furnace (HIP), we achieve firing temperatures exceeding 2000℃.

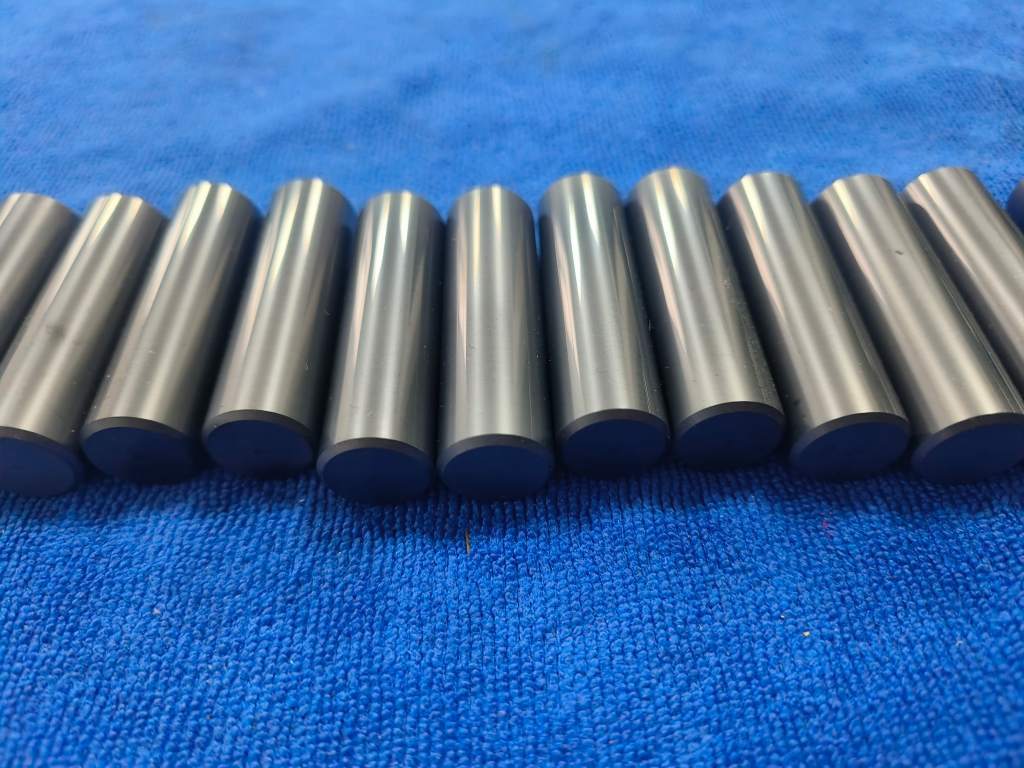

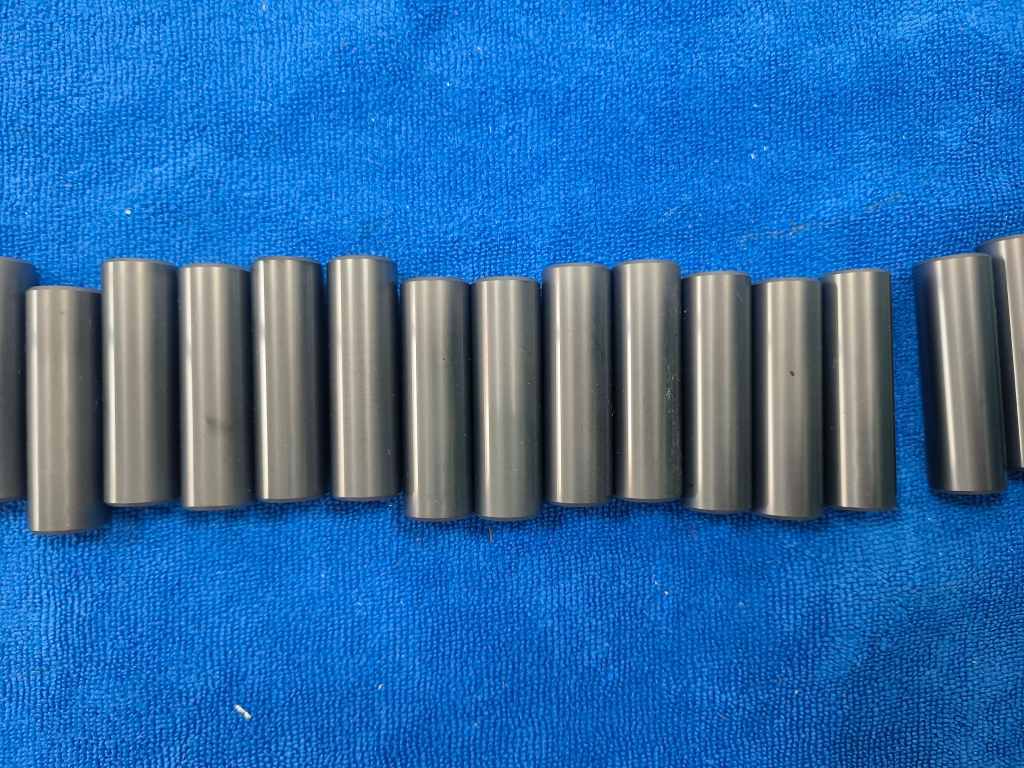

SSIC Shaft with High Temperature and Corrosion Resistance 2 SSIC Shaft with High Temperature and Corrosion Resistance 3
Frequently Asked Questions
Who are we?
We are a Beijing-based factory with over 40 years of experience in ceramic bearing production, maintaining cooperative relationships with domestic and international companies.
How do we guarantee quality?
We implement strict quality control including pre-production samples, precise inspections, and double-layer packaging (foam + carton) to ensure product integrity.
What products do we offer?
Our product range includes ceramic deep groove ball bearings, angular contact bearings, hybrid bearings, linear bearings, and various ceramic balls.
Why choose us over competitors?
As an integrated manufacturer with three factories, we combine advanced production technology with quality inspection capabilities to deliver superior products with reliable lead times.
What services do we provide?
We offer high-quality products with full customization options, including sample provision for customer verification.
Contact Us
We specialize in bearing research, production, and sales, committed to providing quality products and technical services. Using premium materials and meticulous craftsmanship, we create value through customer-focused solutions and reliable after-sales support. Contact us to discuss your requirements and potential cooperation.
